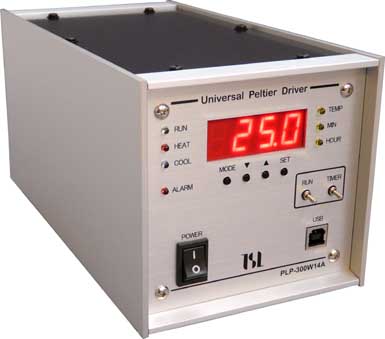

TEC(Peltier) Driver PLP-300W14A
We have been developing and selling Universal Peltier driver.
■ Overview
* full DC drive ( CC ⇔ CV )
* Digital PID Control
* NTC thermistor / Pt Sensor
* Continuous Operation / Timer Operation
* Various Alarm
* DC FAN power
* USB interface
■ Specification
* Outout current0.1A ~ 14.0A(CC)
* Output voltage0.1V ~ 24.0V(CV)
* Output FAN PowerDC12V (1A max)
* Temperature range(Pt Sensor)-40 ~ +100 degC
* Temperature range(Thermistor)-10 ~ +80 degC
* Resolution0.1 degC
* Timer range0.1min ~ 999.9min / 0.1h ~ 720h
* Alarm
(Sensor Alarm / FAN Alarm / TEC Alarm / Power Alarm)
* Event monitoring
(Upper / Lower Temperature monitoring)
■ I/O Connector (Option)
* RS-232 Interface
* Parallel I/O port (2 input / 2 output)
* Sub Sensor input
(**) can not be selected at the same time more than one option
■ Accessories
* AC Power cable
* Dedicated Application Software can be download.
■ Notice
* Product specifications and appearance are subject to change for improvement
* Sensor type(NTC or Pt) and those parameters can be changed and set by
user side freely.
* We can also accept customize, such as changing the set temperature range.
■ Brochure
| Brochure | PDF document, size 3.3MB |
|---|
